Overview

The Dropbox for Business Teams Folders connector in DryvIQ allows you to analyze, migrate, copy, and synchronize team folders in your Dropbox for Business account. This connector is useful in instances where you only want access to team folders. The first step is to create the Dropbox connection by providing the connection information required for DryvIQ to connect to the account. The connector must use a Dropbox for Business Administrator account. Standard accounts will return an error from the Dropbox for Business platform. The connector will only connect to team folders in the root of the account.

For more information on using a standard Dropbox account, please refer to the Dropbox connector page.

Create Connection | User Interface

1. Select Connections > Add connection.

2. Select Dropbox for Business Team Folders as the platform on the Add connection modal.

3. Enter the connection information. Reference the table below for details about each field.

4. Select Sign in with Dropbox for Business Team Folders.

5. On the Dropbox API Request Authorization modal, enter the Email and Password required to log in to the account and select Sign In. Only an Administrator account can be used for Dropbox for Business. Standard accounts will return an error from the Dropbox for Business platform.

6. You will see a "Connection test succeeded" message on the Add connection modal. (If you don't see this message, repeat the sign in and authorization steps above.)

7. Select Done to finish creating the connection.

Add Connection Modal - Dropbox for Business Team Folders

Use Custom Client Credentials

Dropbox API Request Authorization modal

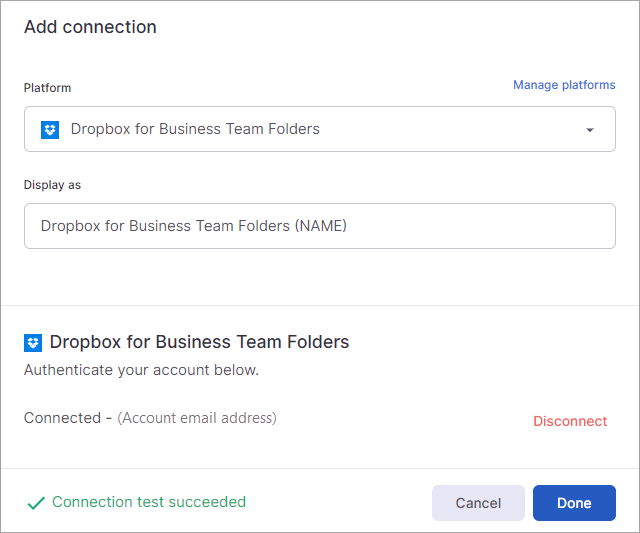

Connection Test Succeeded

Features and Limitations

Platforms all have unique features and limitations. DryvIQ’s transfer engine manages these differences between platforms and allows you to configure actions based on Job Policies and Behaviors. Utilize the Platform Comparison tool to see how your integration platforms may interact regarding features and limitations.

Files and Folders

Below is list of Dropbox's supported and unsupported features as well as additional file/folder restrictions.

Author Preservation

The Dropbox connector uses "per-request impersonation." This means DryvIQ makes requests to the platform on behalf of the account owner, not the administrator. Therefore, files created by other users will fail to upload unless the account owner mounts the shared parent folder into their Dropbox drive before uploading the file. (See https://help.dropbox.com/files-folders/add-shared-folder  for more information.) Failed uploads will be logged with a message similar to the following example: "[PermissionFailure] The account 'Joe Smith' is not authorized to perform the requested operation."

Dropbox Paper

DryvIQ does not support Dropbox paper. Dropbox Paper is a separate work space that stores Paper documents in your account on http://paper.dropbox.com . DryvIQ doesn't support have access to these documents as part of your Dropbox connection.

Path Lengths

Dropbox does not impose restrictions for the total path length.

Segment path lengths are limited to 255 character. Segments are delimited by a forward slash (/). For example, <max 255 characters>/<max 255 characters>.

Permission Disinheritance

Permissions disinheritance is when a set of permissions are set on a parent folder, and a sub-folder "breaks" those  permission rules and add new ones (by removing user access, changing the permission level, etc.). There is a known issue with permission disinheritance when Dropbox for Business Teams Folders is the source platform. When migrating content to a destination platform that supports permission disinheritance, the disinheritance may not be correctly applied. This will be addressed in a future release. Please reach out to DryvIQ Customer Support or your DryvIQ Customer Success representative if you have questions regarding this issue.

Versioning

The Dropbox platform treats content version history differently than other cloud platforms, with each native move and rename tracked as a new version. In order to only transfer true version history, enable the Scripting option on step 6 during job creation and copy the following JSON into the scripting box.

{
"transfer": {
"versioning": {
            "preserve": "native",
            "select": "published"
         }
     }
}

Version Limits

While Dropbox allows you to store unlimited versions, the platform restricts version downloads to 100. This means only the most recent 100 versions for a given file will be transferred to the destination. Refer to the Dropbox API Documentation for more information.  You can also find additional information in the Dropbox Forum.

Create Connection | REST API

Create a New Dropbox Connection

The following GET will return a target URL. Use this URL to log in to the Dropbox for Business account to authenticate and create the connection. Make sure you connect using an Administrator account.

GET {{url}}v1/connections/platforms/dfb-teams/new

Create a New Dropbox Connection Using Custom Credentials

Create a new connection using custom credentials with the example call below. Replace the name, client_id, and client_secret with information relevant to your connection.

{
  "name": "Dropbox for Business Teams Folder",
  "platform": {
    "id": "dfb-teams"
  },
  "auth": {
    "client_id": "{{clientID}}",
    "client_secret": "{{clientSecret}}"
  }
}

Dropbox for Business with Single Sign-On (SSO)

Create a new connection using single sign-on with the example call below. You will need to obtain the applicable access token for your Dropbox for Business account.

{
  "name": "Dropbox for Business Teams Folder",
  "platform": {
    "id": "dfb-teams"
  },
  "auth": {
   "access_token": "{{access_token}}"
  }
}

Create Job | Dropbox for Business Team Folders Account Admin Connection

Create a simple transfer job using the example call below. Replace the information with information relevant to your job and connectors.

{
    "name":"Simple Job",
    "kind": "transfer",
    "transfer": {
      "transfer_type": "copy",
        "source": {
            "connection": { "id": "source connection id" },
			"impersonate_as": { "email": "user@company.com" },
            "target": {
                "path": "/sourceFolder"
            }
        },
        "destination": {
            "connection": { "id": "destination connection id" },
            "target": {
                "path": "/path/destinationFolder"
            }
        },
        "simulation_mode": false
    },
    "schedule": {
        "mode": "manual"
    },
    "stop_policy": {
        "on_success": 5,
        "on_failure": 5,
        "on_execute": 25
    },
    "category": {
      "name": "Report Category {Name}"
    }
}
